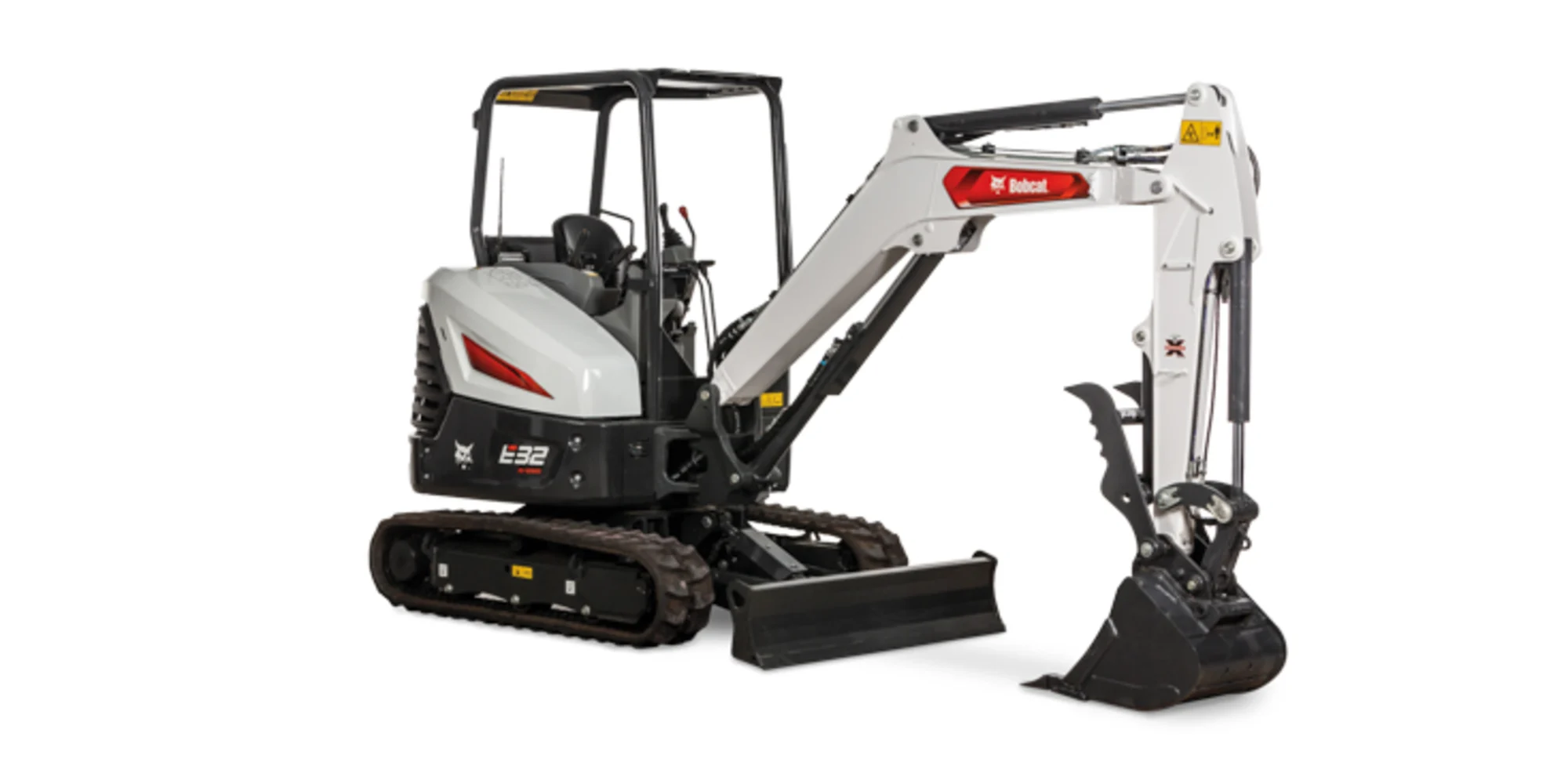

Bobcat E32 Compact Excavator

The E32 features unmatched power and a narrow stance. Features include: Powerful performance and maneuverability, Conventional tail swing, Ideal for restrictions like doors and gates, and Various arm options.

24.8 hp

Horsepower

7,403 lb

Operating Weight

121.2 in

Dig Depth

Bobcat E32 Compact Excavator

Let's Get Started

"*" indicates required fields

Hidden
Newsletter Signup
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden

Bobcat E32 Compact Excavator Specs & Add-Ons

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications

Horsepower 24.8 hp
Operating Weight 7,403 lb
Bucket Digging Force 7,284 lbf
Maximum Reach at Ground Level 194.5 in
Width 61.8 in
Tail Swing Type Conventional
Fuel Tank 13.7 gal
Auxiliary Std Flow 16.9 gal/min
Auxiliary Pressure 2,987 psi

Performance

Operating Weight 7,403 lb
Weight Class 3.4 t
Travel Speed - High 2.9 mph
Travel Speed - Low 1.6 mph
Arm Digging Force 4,690 lbf
Bucket Digging Force 7,284 lbf
Rated Lift Capacity 2975 lb
Lift Radius 118 in
Boom Swing - Left 75°
Boom Swing - Right 55°
Maximum Dig Depth 121.2 in
Max Dump Height 137.2 in
Maximum Reach at Ground Level 194.5 in
Emissions Tier (EPA) Tier 4
Engine Fuel Diesel
Maximum Governed RPM 2,450 rpm
Horsepower 24.8 hp
Turbocharged Engine no
Optional Turbocharged Engine N/A

Dimensions

Length 183.7 in
Overall Length in Travel Position 183.7 in
Width 61.8 in
Height 96.2 in
Height with Operator Cab 96.2 in

Bobcat E32 Compact Excavator Features

Low-Effort Joysticks

Low-Effort Joysticks

Low-effort joysticks in R2-Series excavators respond easily to operator input, helping operators work longer with less fatigue.

Dual Flange Roller System

Dual Flange Roller System

Dual flange track rollers extend the undercarriage structure closer to the track’s edge so you can dig with greater confidence over the side of the machine.

Multiple Arm Configurations

Multiple Arm Configurations

Multiple arm configurations are available on select models, including standard, long and extendable. Depending on the reach, depth, power, and lifting performance you need, there’s an arm to meet your job requirements.

Premium Cab

Premium Cab

Premium comfort gives you the endurance to power through long days and tough jobs. When you step inside the Bobcat compact (mini) excavator cab, you’ll experience plenty of headroom and legroom, clear visibility, a larger suspension seat and more.

Touch Display

Touch Display

The most advanced in-cab display for compact equipment – optional on R2-Series excavators – provides detailed machine information and unprecedented device connectivity. View machine performance information on the wide touchscreen.

Depth Check System

Depth Check System

The Bobcat® depth check system delivers accurate dig depth measurement for precise digging performance, eliminating over-digging and the costs associated with backfilling and compacting fill material. R2-Series models are depth check ready.

Pro Clamp System

Pro Clamp System

The Pro Clamp™ system consists of a base component, standard pin-on work tool and optional grading tool. Grab large, small or irregular objects with greater confidence. Create a smooth trench bottom and clean up spoil piles quickly.

Integrated Lift Eye

Integrated Lift Eye

The lift eye is standard on R2-Series excavators to provide a convenient method for handling objects or moving items in and out of the trench.

Optional Rear Camera

Optional Rear Camera

The optional rear camera for R2-Series excavators provides an additional viewpoint for working in certain applications. When needed, you can get a continuous rear view from the operator seat.
