Bobcat TL519 Telehandler

The Bobcat® TL519 telehandler is compact in size but delivers outsized productivity with a maximum rated capacity of 5,500 pounds and a lift height of 19.6 feet. Features include: Turbo-charged, non-DPF engine, Two-staged, low-profile boom, Impressive pushing power, Four steering modes, High-visibility design.

74 hp

Horsepower

9898 lb

Operating Weight

233 in

Lift Height

Bobcat TL519 Telehandler Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Specifications

Horsepower 74 hp
Operating Weight 9898 lb
Rated Capacity 5512 lb
Lift Height 233 in
Auxiliary Std Flow 21.1 gal/min

Performance

Operating Weight 9898 lb
Travel Speed - High 17 mph
Travel Speed - Low 4.3 mph
Rated Capacity 5512 lb
Lift Height 233 in
Lift Height @ Rated Capacity 248 in
Bucket Breakout Force 9,723 lbf
Max Draw Bar Pull 6744 lb
Boom Breakout Force 6,744 lbf
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 74 hp
Displacement 146 in³
Turbocharged Engine yes

Dimensions

Length 205 in
Length Fork Heel To Rear 157 in
Width 72.1 in
Height 76 in
Height with Operator Cab 76 in
Cab Height with Beacon 82.1 in
Wheelbase 92.9 in

Compatible Attachments

Bobcat Pallet Fork Attachment

Move bulky, bagged or palletized material quickly and easily with the pallet fork attachment Adjustable forks built for ...

Bobcat Angle Broom Attachment

Efficiently sweep and clean with the hydraulically driven angle broom attachment Heavy-duty broom bristles create a cleane...

Bobcat Snow Blade Attachment

Plow through the deepest drifts and push large piles of snow Fingertip controls make it easy to configure the hydraulica...

Bobcat Combination Bucket Attachment

Designed to capitalize on the full capabilities of your Bobcat® compact wheel loader, this four-in-one attachment can be u...

Bobcat Sand and Salt Spreader Attachment

Need to spread sand and salt for winter maintenance? The spreader attachment gets it done right and provides the versatili...

Bobcat Industrial Grapple Attachment

Built for maximum power and reliability Delivers easy handling of bulky, hard-to-manage materials in the industrial or c...

Bobcat Landplane Attachment

Turn your compact loader into a powerful land planing tool with the landplane attachment Working in forward or reverse, ...

Bobcat Seeder Attachment

Place seed with proper spacing and at precisely the right depth Unlike broadcast seeders, this attachment seeds directly...

Bobcat Root Grapple Attachment

Built to be the biggest, baddest biter of them all, to rip into tough jobs with ease Heavy-duty design provides extreme ...

Bobcat Dozer Blade Attachment

Excavates and grades material with optimum performance and durability Turns loaders into mini-crawlers; ideal for constr...

Bobcat Auger Attachment

Dig holes with speed and plumb-line accuracy using a Bobcat® auger attachment The auger is ideal for applications that r...

Bobcat Landscape Rake Attachment

Give any worksite the perfect finish with the landscape rake attachment Rake and collect surface debris while smoothing ...

Bobcat Bucket – Heavy Duty, 74″ Attachment

Bring unprecedented precision to any job site Cut a grade, flatten your work area or scrape material off hard surfaces w...

Bobcat Soil Conditioner Attachment

A versatile, cost-effective attachment no landscaping crew should be without Prepare the soil while leveling and filling...

Bobcat Truss Boom Attachment

Lift and place trusses with the extended reach of the rugged, 12-foot truss boom attachment Designed for Bobcat® telehan...

Bobcat Rock Bucket Attachment

Separate rocks, debris and other unwanted objects while leaving finer material behind The tines scoop and retain debris ...

Bobcat Sweeper Attachment

Collect and dump dust, dirt and debris Accomplishes the work of multiple clean-up attachments with optimal bristle-to-su...

Bobcat Heavy Duty Bucket Attachment

Bring unprecedented precision to any job site Cut a grade, flatten your work area or scrape material off hard surfaces w...

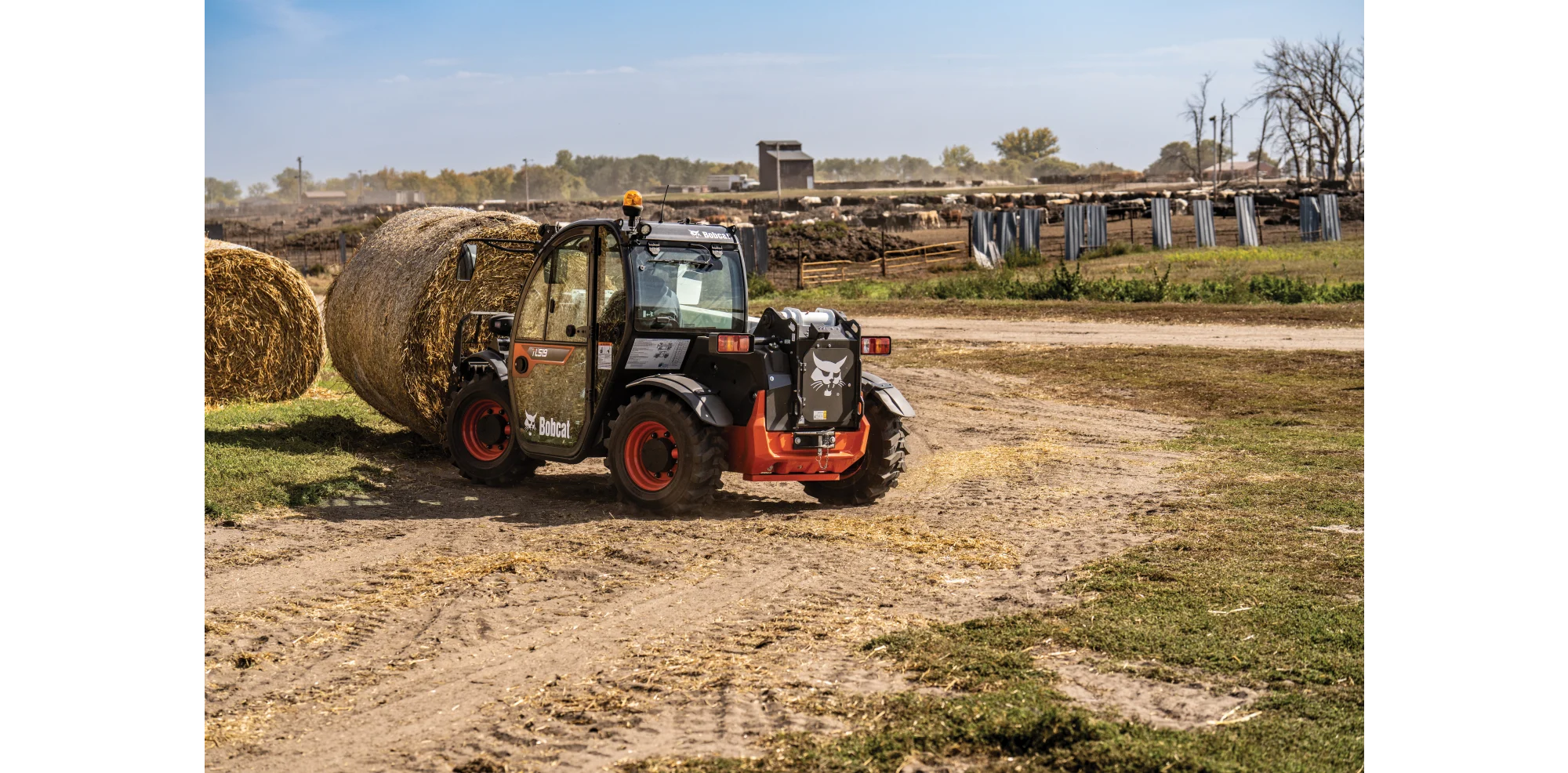

Bobcat Bale Fork Attachment

Move and load round, uneven or square bales Bale fork length: 40.8 inches Two small-diameter forks penetrate the mater...

Bobcat Brushcat Rotary Cutter Attachment

Mulches trees and saplings up to 3 inches in diameter The short deck with superior oscillation follows ground contours f...

Bobcat Flail Cutter Attachment

Clears brush and small trees while distributing cut materials evenly Cutting width of 79 inches Delivers excellent cut...

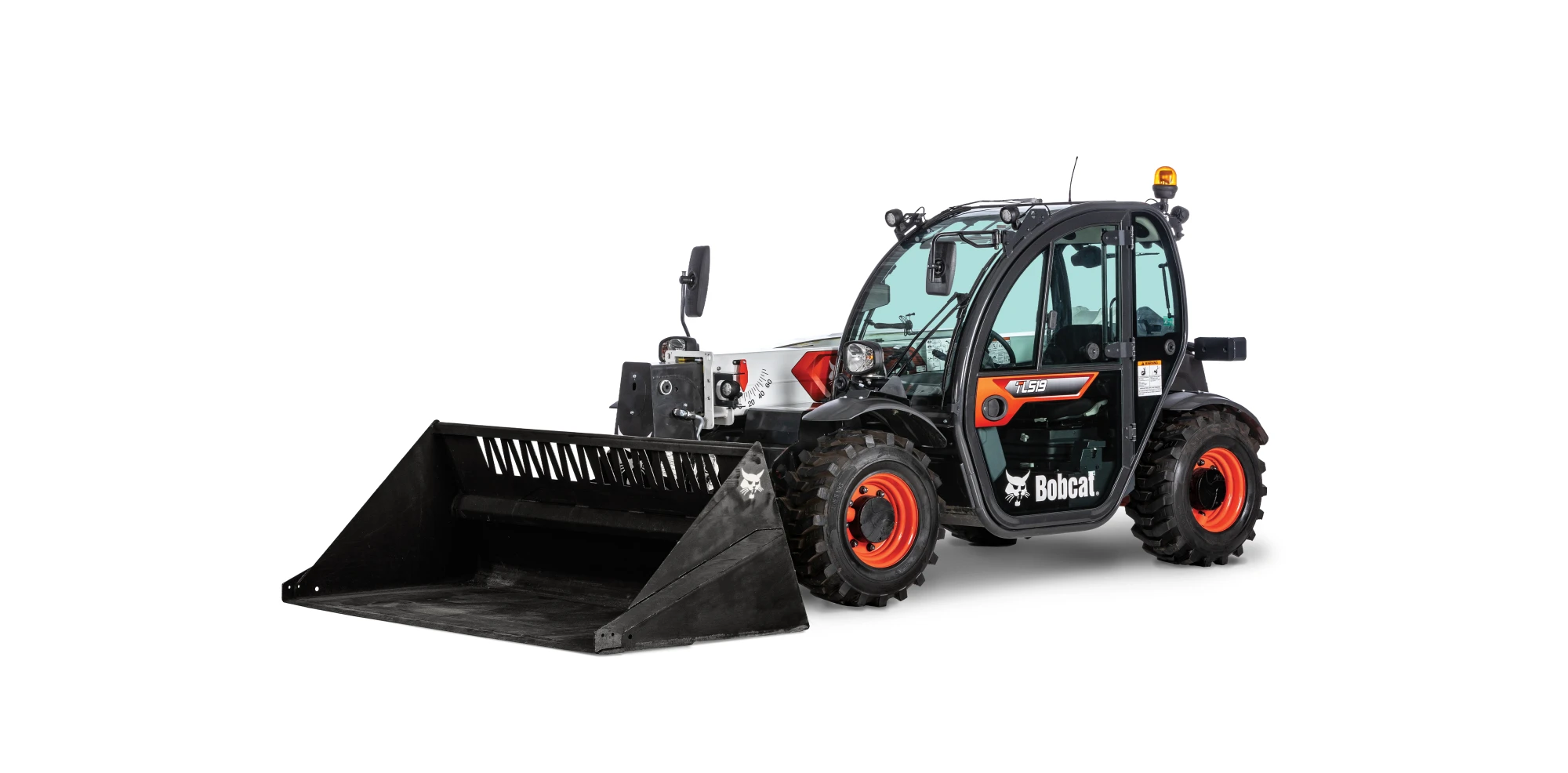

Bobcat Light Material Bucket Attachment
