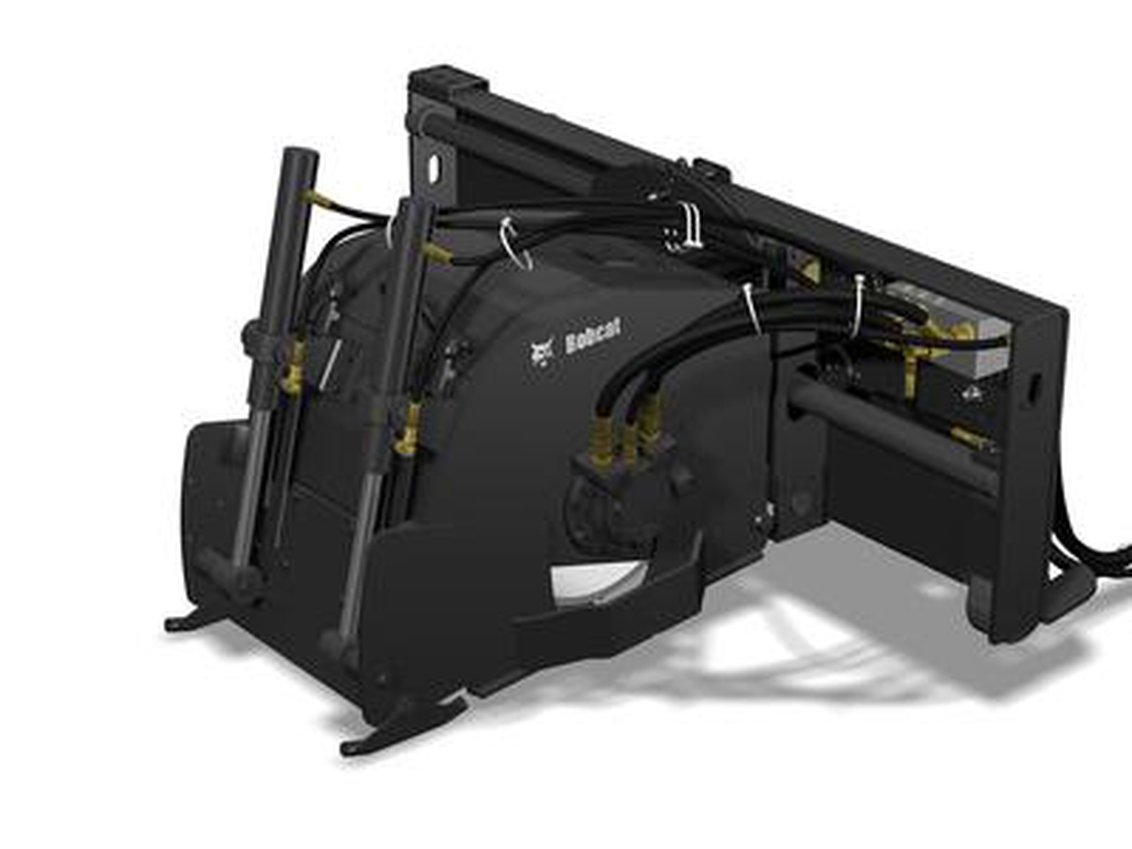

Bobcat Planer – High Flow, 18″ Attachment
Standard flow planer provides excellent performance on standard flow machines allowing a lower initial investment for those that only need to use a planer periodically. High flow planers utilize the increased hydraulic horsepower. Cut and mill concrete and asphalt. Much less expensive to maintain and more maneuverable than dedicated planers. Versatile and durable, delivering high torque for maximum cutting and milling performance. Easily set and maintain depth, width, and slope control.
Compatible With:
Loaders
Key Specifications
Operating Weight 1191 lb
Length 47.5 in
Width 66.4 in
Height 35.2 in
Cutting Depth Max 6 in
Drum Width Max 18 in
Sideshift 29.8 in
Maximum Cutting Angle 15°
Planing Distance Next to Curb 75.4 in
Drum Diameter 17.8 in
Flow Range Min 22 gal/min
Flow Range Max 40 gal/min
Key Features
Drum options Choose from multiple drum options to match your job needs.
Oscillation The housing oscillates up to +/- 15 degrees, allowing the operator to cut angles or match two uneven surfaces.
Replaceable Ski Wear Pads The replaceable ski wear pads make maintenance easier and more affordable.
Steel Wheels Mounted on the rear, the wheels provide support and reduce tire bounce for a smoother cut.
Side Cutting Teeth The cutting teeth decrease drum binding in the cut for smoother operation and provide a vertical edge for improving the joint bond between new and existing road layers.
Free-Floating Oscillation The cutting wheel oscillates side to side to provide optimum surface tracking regardless of loader movements, so even if the loader tires fall into a hole or depression it will cut evenly. With the Bobcat planer, pavement milling is a controlled process as the depth, width, and slope are easily set and controlled by the operator.
Hydraulic Side Shift Side shifting allows milling outside the width of the carrier, making possible flush cutting adjacent to curbs and walls.
Large Rear Opening The large rear opening reduces the amount of material being re-milled, increasing productivity because more material can be removed from the planer before it is reground into smaller pieces.
Removable End Plate As the only manufacturer offering this feature, Bobcat allows the planer to mill flush against walls with no further clean-up work required.
Visible Left Ski With the left ski visible, the operator can Keep the planer centered and maintain easier control over its path.
Top Access Panel To inspect and replace cutting bits, a top access panel allows for easy inspection and saves maintenance time. Planer bits can be changed and removed using the specially designed bit tool.
Planer Drum The planer drum is a one-piece concentric unit made for better durability and smooth cutting.
Priority Valve The priority valve diverts oil-to-depth function without causing momentary loss of power to planer drum, allowing the operator to make adjustments on the go and without sacrificing the planer’s cutting power.
Independently Adjustable Skis Fingertip controls from the operator’s seat provide depth and angle control for a consistent cut depth. Also, skis push debris away, keeping the skids in contact with the cutting surface.
Diverter Valve he diverter valve allows the operator to switch between hydraulic side-shift and hydraulic oscillation functions.
Front Access Panel The access panel makes it easy to inspect and replace cutting bits and reduces maintenance time.
Hydraulic Side Shift Side shifting allows milling outside the width of the carrier, making possible flush cutting adjacent to curbs and walls.
Two Direct-Drive Motors With a direct-drive motor on each side of the drum, you get increased torque force which also increases productivity and the life of the planer.
