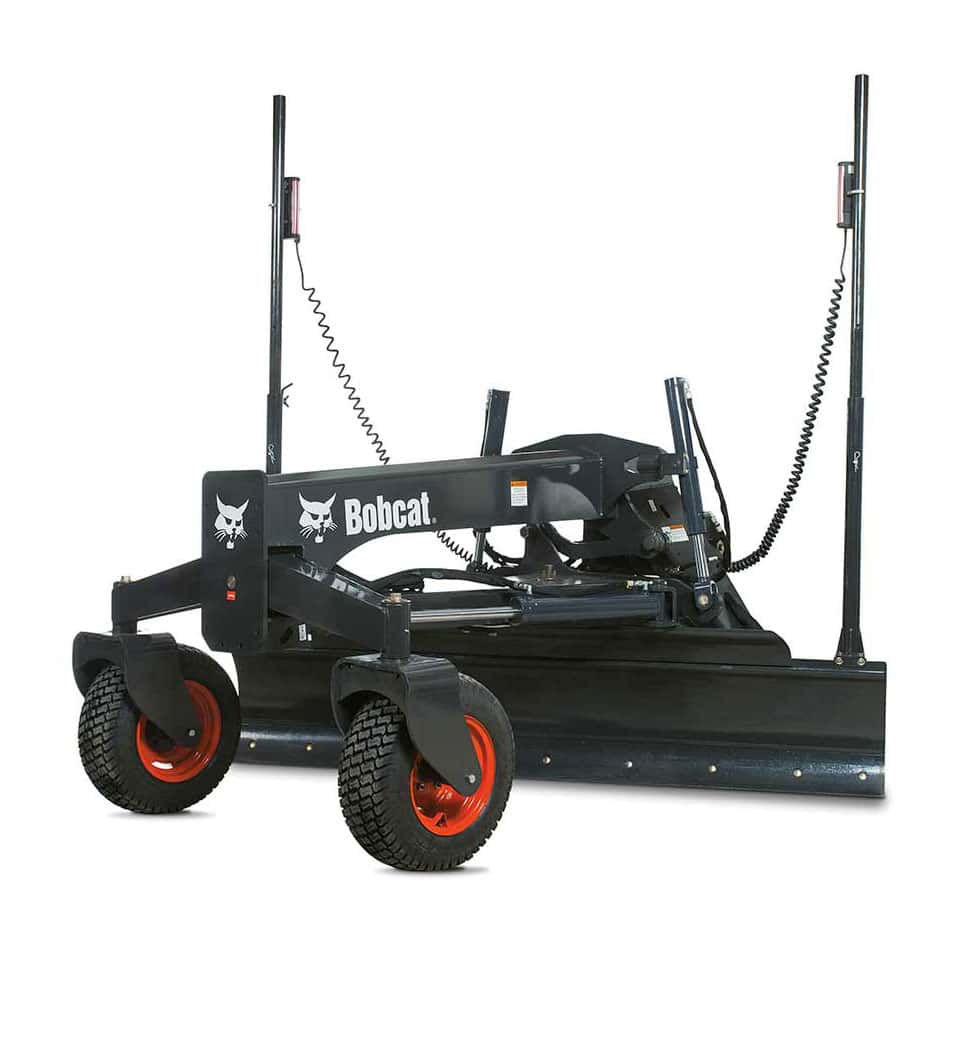

Grader

Turn your Bobcat® loader into a high-performance grading machine. Grade surfaces with precision and control while maximizing productivity. Excels at high-performance grading with powerful precision. Select from several blade positions to grade any surface.

Compatible With:

Loaders

Utility Work Machines

Grader

Let's Get Started

"*" indicates required fields

This field is hidden when viewing the form
Newsletter Signup
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

$350

Per Day

$1050

Per Week

$2595

Per Month

Grader

Get Rental Quote

"*" indicates required fields

This field is hidden when viewing the form
Newsletter Signup
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

]

Key Specifications

Operating Weight 1375 lb
Length 94.5 in
Width 84 in
Height 46.7 in
Cylinders 3
Bolster Width 1255 mm
Blade Height 378 mm
Max. Lift 173 mm
Max. Cut Depth 114 mm
Blade Base 1219 mm
Grader Control Valve 3 spool electric solenoid control
Blade Offset (Right or Left) 12 in
Moldboard Angle (Right of Left) 25°
Moldboard Cutting Edge (reversible) 1/2" x 6"
Cutting Edge (reversible) - Length 6 in
Cutting Edge (reversible) - Width 0.5 in
Blade Offset Hydraulic (Right or Left) 13 in

Key Features

Dirt Shield Mounted over the moldboard on larger models, the dirt shield keeps pushed materials moving forward.
Flotation Tires The tires provide excellent flotation to keep the grader moving smoothly over the work area.
Side Shift Manual side shifts on smaller models move the blade up to 12 inches to the left or right. The hydraulic side shift on larger models provides up to 13 inches to the left or right, making it easier to grade next to buildings, poles, and other obstacles.
Oscillating Bolster The bolster oscillates to minimize the effect of uneven ground, delivering consistent grading performance.
Proportional Hydraulic Valve With three speeds at which the moldboard can be raised or lowered, the grader’s operation can be more closely matched to the speed of the loader. The longer the operator presses the button that controls the valve, the faster the moldboard moves. It also provides finer control with automatic grading solutions.
Bolt-On, Reversible Cutting Edge When the edge wears out it can be flipped over to provide a fresh cutting edge.
Bolt-On End Wing Kit The wing kit helps carry more material when fine grading or spreading materials such as sand or gravel. It turns the grader into a box blade, eliminating the need for an additional attachment. Optional for larger graders.
Automatic Control Systems Automatic Control Systems increase accuracy and productivity. The blade moves up or down automatically to keep the base material exactly on-grade. Grader is 3D laser-ready. Laser control and sonic/cross slope systems are available.
