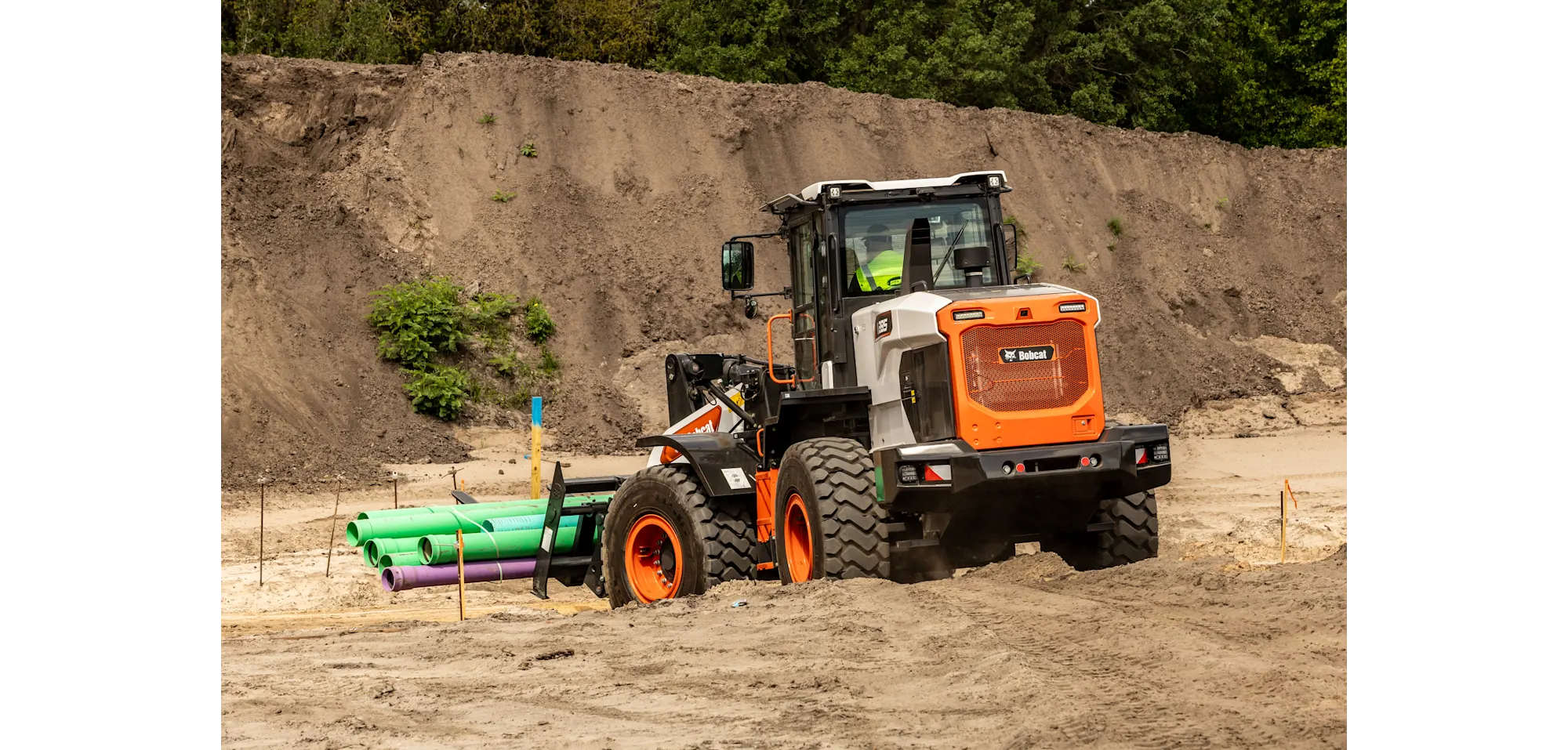

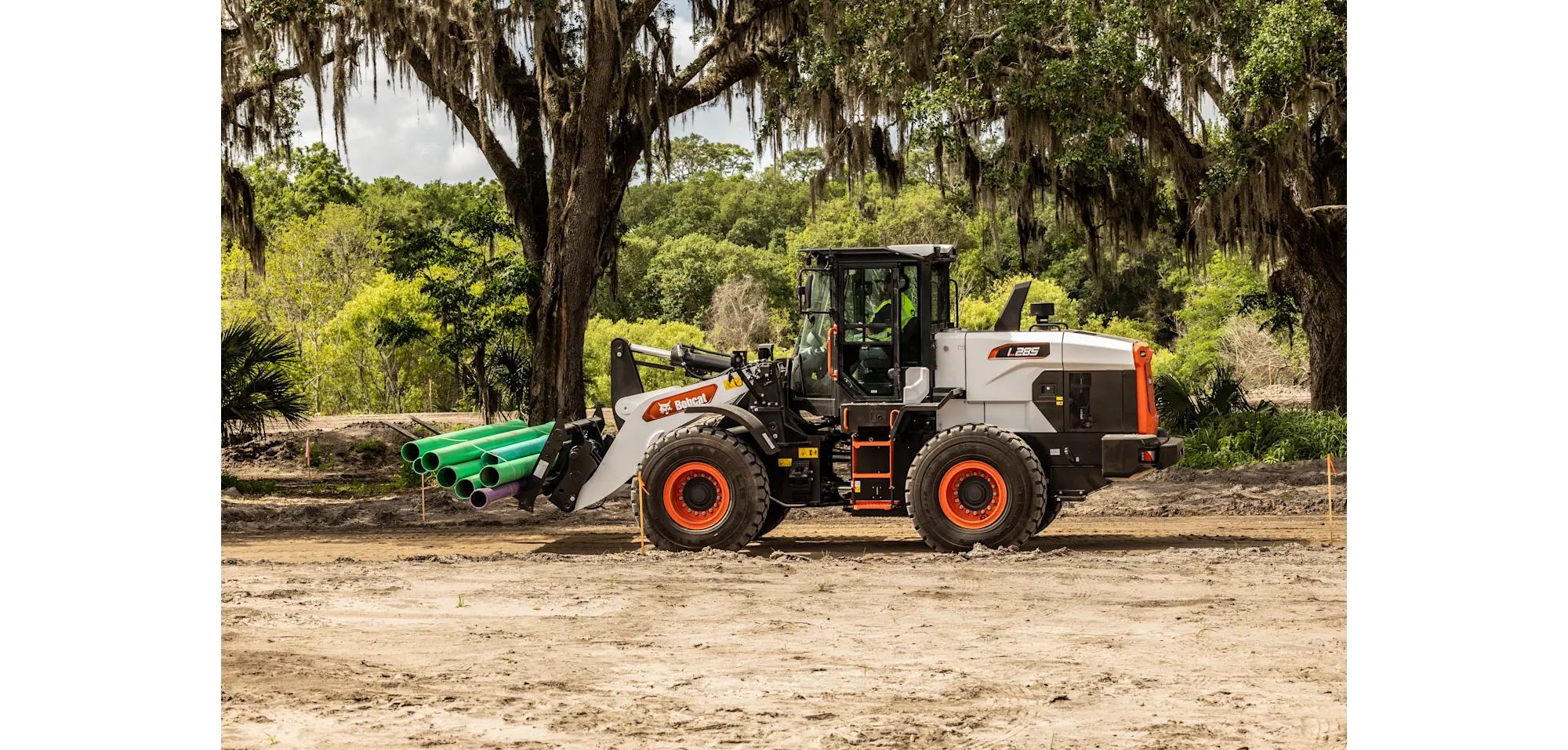

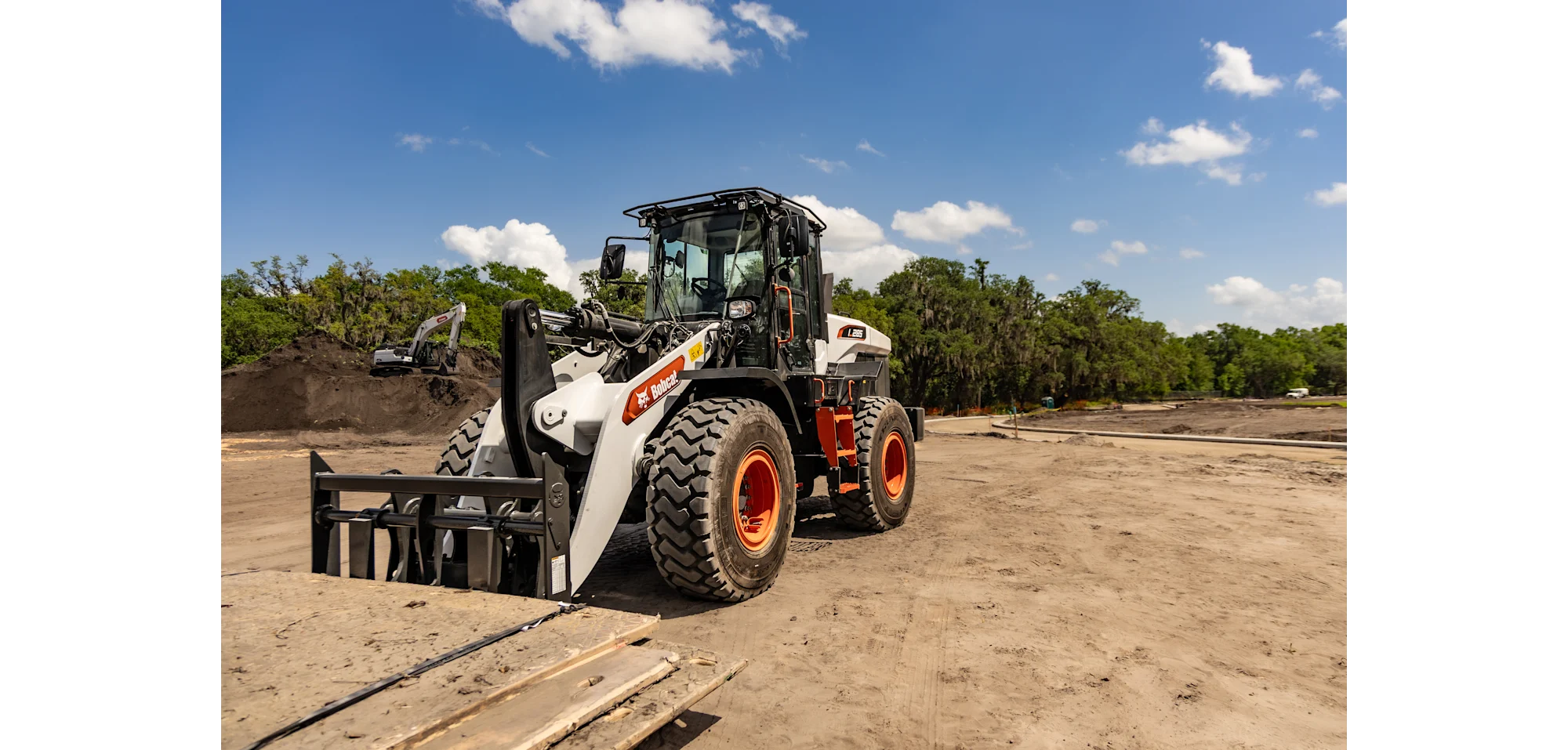

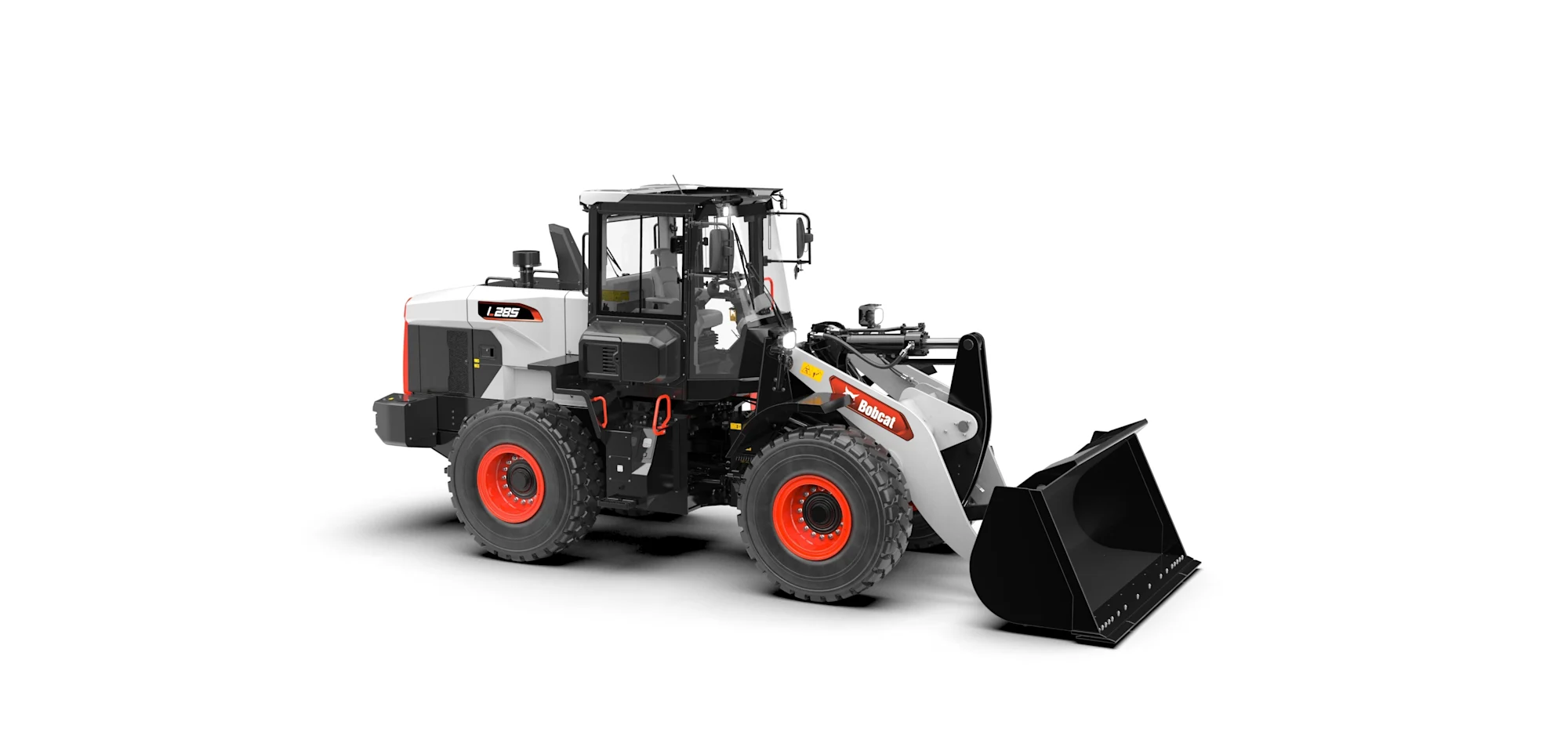

Bobcat L285 Large Wheel Loader
The Bobcat® L285 large wheel loader provides top-of-the-line lifting capability and smooth, efficient control with spacious operator comfort to help you outlast the biggest material handling jobs. Three transmission modes help you fine-tune performance to match changing jobsite conditions. A 3-year/5,000-hour full-coverage warranty backs Bobcat quality and durability with extra peace of mind. Joystick controls offer smooth, push-button direction changes, with no need to take your hands off the control.
189 hp
Horsepower
34487 lbs
Operating Weight
24121 lbs
Tipping Capacity
Bobcat L285 Large Wheel Loader Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Specifications
Diesel Exhaust Fluid (DEF) Capacity 7.9 gal
Fuel Tank 62.1 gal
Main Pump Pressure 3844 psi
3rd Spool Max. Flow Rate 66 gpm
3rd Spool Pressure 4351 psi
Main Pump Max. Flow Rate 64.9 gpm
Main Drive Power Shift 4F/4R
Performance
Tipping Capacity with Bucket (Articulated) 24121 lbs
Tipping Capacity with Bucket (Straight) 27364 lbs
Max. Travel Speed – Forward 22.1 mph
Bucket Capacities 3.5-5.5 yd3 (2.6-4.2 m3)
Max. Travel Speed – Reverse 15 mph
Dimensions
Inside Turning Radius With Bucket 243.8 in
Articulation Angle 40 deg
Outside Turning Radius 216.9 in
Length without Attachment 260.6 in
Length with Standard Bucket 315 in
Width (with bucket) 107.9 in
Width (over tires) 103.9 in
Height with Operator Cab 132.2 in
Height to Bucket Hinge Pin 155.5 in
Dump Angle @ Maximum Height 46 deg
Ground Clearance 17 in
Rollback Angle 49 deg
Wheelbase 120 in
Tire Size 20.5R25 L3
Wheel Tread 80.3 in
Bobcat L285 Large Wheel Loader
