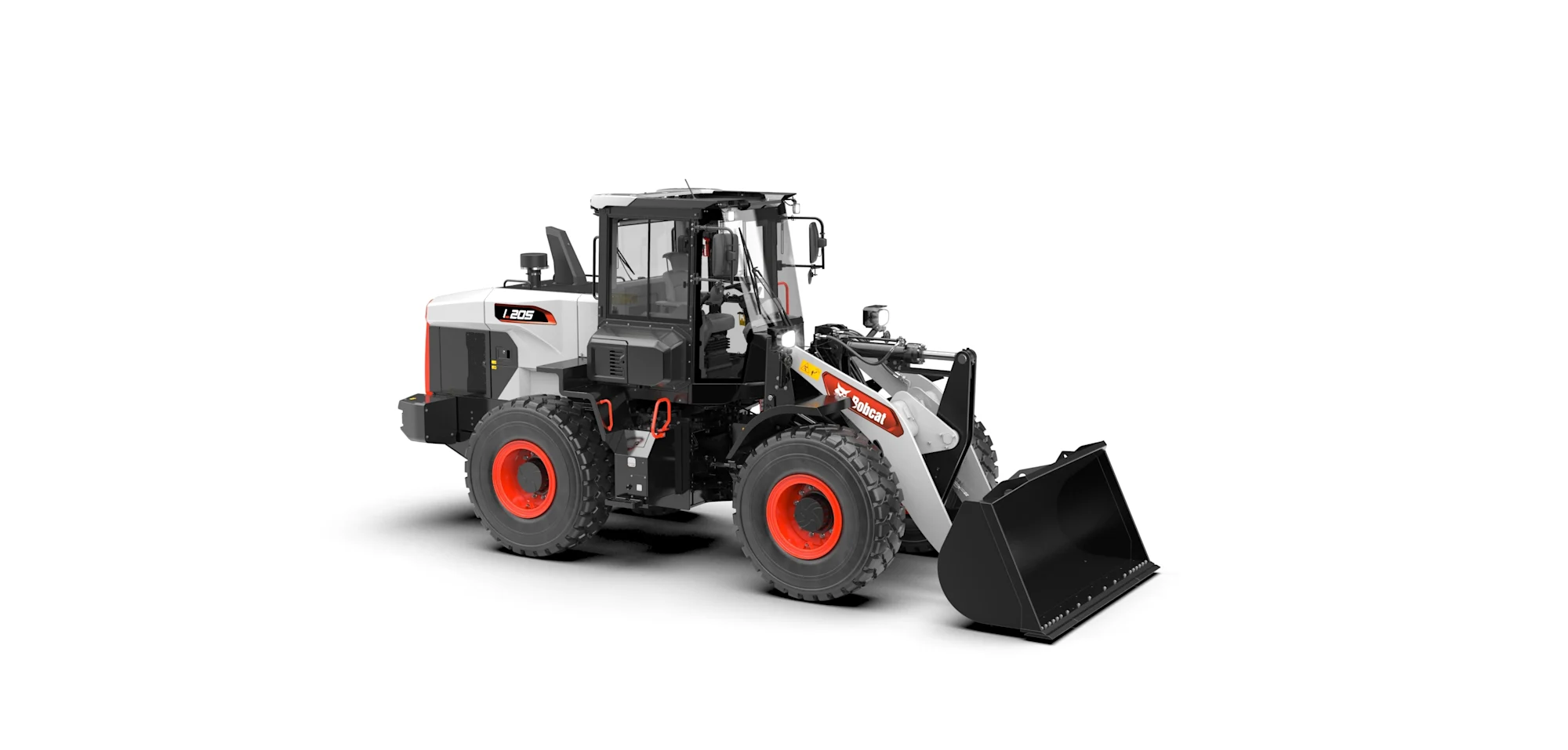

Bobcat L205 Large Wheel Loader
Three power modes help you customize performance to match the job and manage fuel economy. Proven Bobcat durability and a 3-year/5,000-hour full-coverage warranty give you peace of mind. A roomy, comfortable operator environment features low noise, excellent visibility and intuitive controls to help make every hour of work more productive.
142 hp
Horsepower
27274 lbs
Operating Weight
20370 lbs
Tipping Capacity
Bobcat L205 Large Wheel Loader Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Specifications
Diesel Exhaust Fluid (DEF) Capacity 5 gal
Fuel Tank 62.1 gal
Main Pump Pressure 3843 psi
3rd Spool Max. Flow Rate 40.9 gpm
3rd Spool Pressure 4351 psi
Main Pump Max. Flow Rate 40.9 gpm
Main Drive Hydrostatic 4F/3R
Performance
Tipping Capacity with Bucket (Articulated) 20370 lbs
Tipping Capacity with Bucket (Straight) 20370 lbs
Max. Travel Speed – Forward 23.6 mph
Bucket Capacities 2.5-4.0 yd3 (1.9-3.0 m3)
Max. Travel Speed – Reverse 12.4 mph
Dimensions
Inside Turning Radius With Bucket 231.2 in
Articulation Angle 40 deg
Outside Turning Radius 211.2 in
Length without Attachment 249.6 in
Length with Standard Bucket 295.7 in
Width (with bucket) 100.4 in
Width (over tires) 99.6 in
Height with Operator Cab 130.3 in
Height to Bucket Hinge Pin 147 in
Dump Angle @ Maximum Height 46 deg
Ground Clearance 17 in
Rollback Angle 49 deg
Wheelbase 120 in
Tire Size 20.5R25(L3)
Wheel Tread 75.9 in
