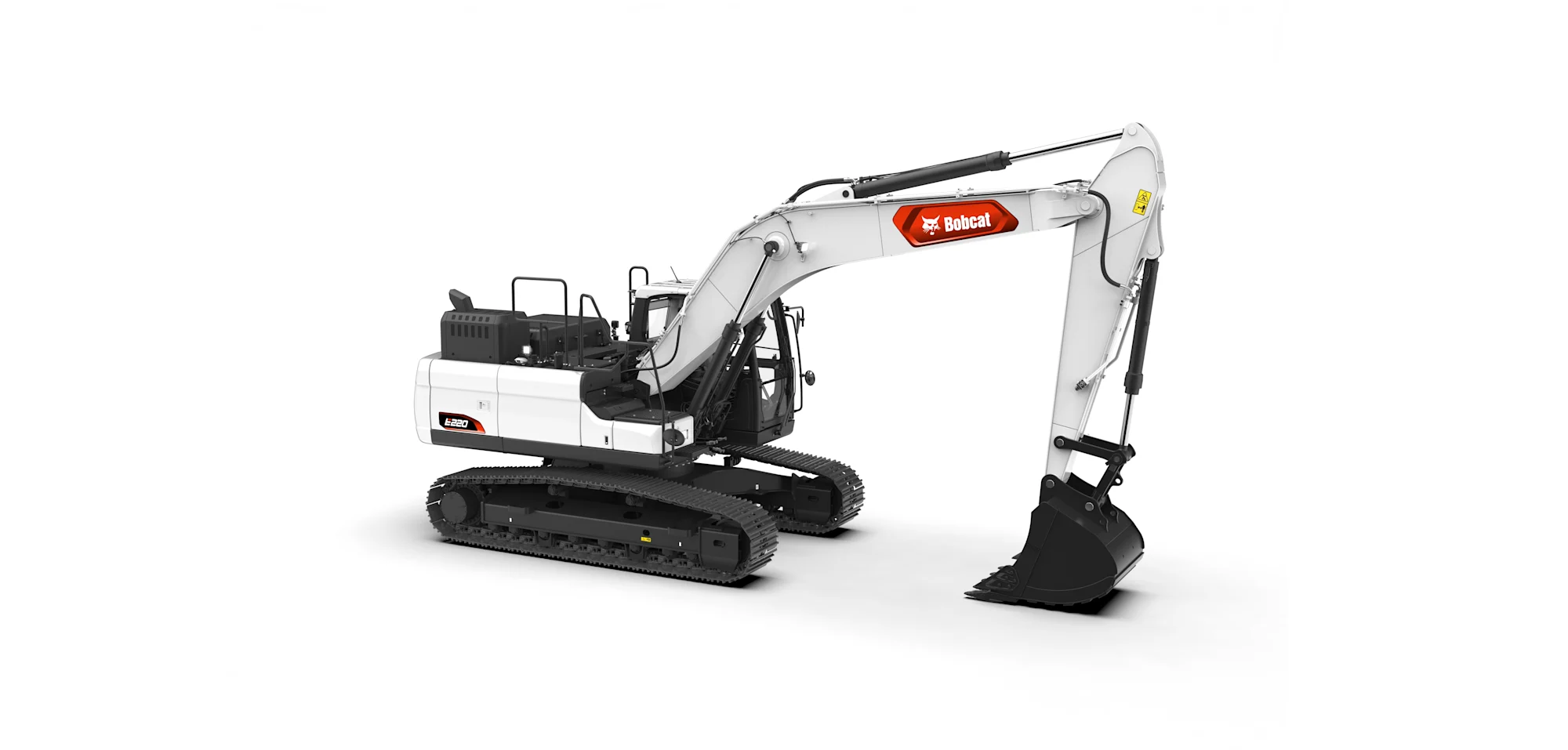

Bobcat E220 Large Excavator

The Bobcat® E220 large excavator delivers powerful digging performance with efficiency and all-day comfort to handle large-scale projects – plus backing from the experienced Bobcat dealer network. Four power modes let you optimize performance for fuel economy or maximum digging performance. Fine swing feature brings upper structure to a smooth, gradual stop for more efficiency and fewer material spills. A roomy, quiet cab with heated, adjustable air-suspension seat features intuitive controls, with a great view to your work and surroundings. The standard 8-inch touch display provides machine data, warnings, camera views, plus automatic night view for easy navigation in low light.

52738 lbs

Operating Weight

35464 lbf

Digging Force

381.7 in

Maximum Reach

Bobcat E220 Large Excavator

Let's Get Started

"*" indicates required fields

This field is hidden when viewing the form
Newsletter Signup
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Bobcat E220 Large Excavator Specs & Add-Ons

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications

Operating Weight 52738 lbs
Bucket Digging Force 35464 lbf
Maximum Reach at Ground Level 381.7 in
Width 125.6 in
Fuel Tank 103.6 gal
Total Hydraulic Flow 111.2 gpm
Auxiliary Pressure 4978 psi

Performance

Operating Weight 52738 lbs
Weight Class 24 t
Travel Speed - High 3.4 mph
Travel Speed - Low 1.9 mph
Arm Digging Force 25402 lbf
Bucket Digging Force 35464 lbf
Maximum Dig Depth 259.4 in
Max Dump Height 268.9 in
Maximum Reach at Ground Level 381.7 in
Turbocharged Engine Yes

Dimensions

Length 376.8 in
Width 125.6 in
Height 118.3 in
Height with Operator Cab 117.3 in
