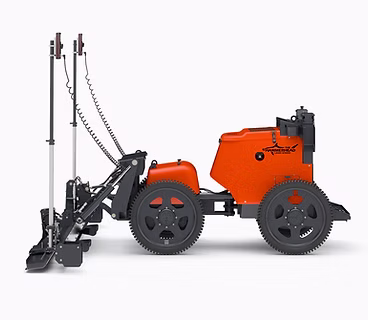

10′ LASER SCREED – SOMERO HAMMERHEAD
The Hammerhead Laser Screed Machine by Somero , is the latest innovation from the Leaders in Leveling to put laser screed technology into the hands of concrete contractors – no matter the size of their business or their projects.
10′ LASER SCREED – SOMERO HAMMERHEAD Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Specifications
Weight 1,233 lbs.
Width With Head 10' 2 3/4" (without Head: 3' 7 7/8”)
Height 4' 5 1/4"
Length With Head 9' 7 7/8" (transport Mode: 8' 11”)
Engine Model Vanguard 23, 4-Stroke with 2 cylinders, air cooled
Horse Power 20.9 hp (15.6 kW) @ 3600 RPM
Fuel Gasoline, 87 Octane minimum
Controls Manual throttle and choke with electric shutoff
Raking/Grading Yes - 8' rake head
Screed Head Width 10' (8' optional)
Vibrator Width 10' vibrator
