$28,900

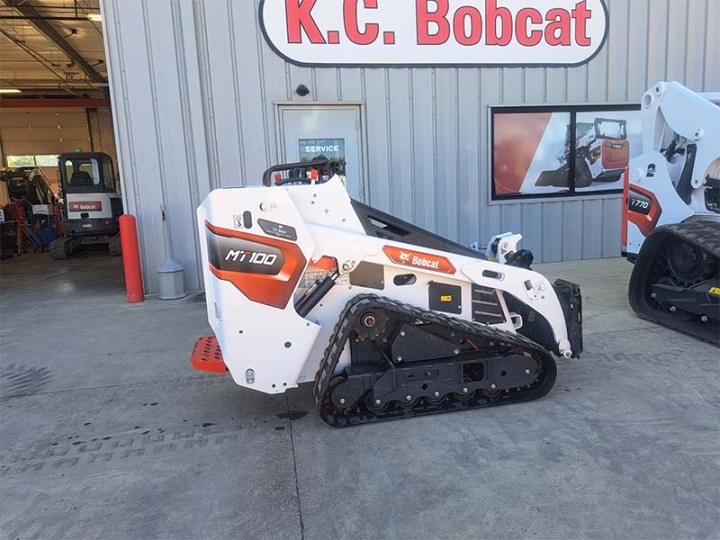

2024 MT100 MINI TRACK LOADER

BOBCAT INTERFACE, WIDE RUBBER TRACKS

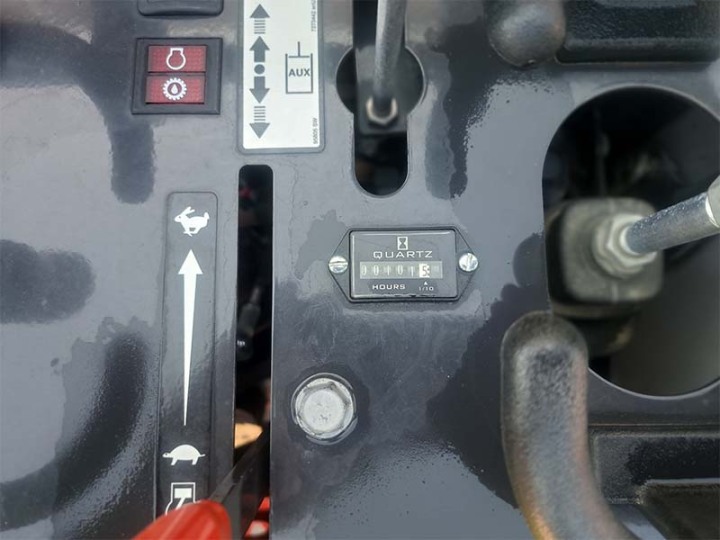

102

Hours

B52P42155

Serial #

1355880

Stock #

** Price may vary. Contact KC Bobcat - Olathe

2024 MT100 MINI TRACK LOADER

Let's Get Started

"*" indicates required fields

This field is hidden when viewing the form
Newsletter Signup
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.

Bobcat MT100 Mini Track Loader Specs & Add-Ons

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications & Add-ons

Lift-Arm Support Standard
Auxiliary Hydraulics Standard
Spark Arrestor Muffler Standard
Bob-Tach Attachment System Standard
Reverse Travel Stop Panel Not Applicable
Wide Track Optional
Neutral Start Interlocks Standard
Lift Arm Lockout With Manual Bypass Standard
Tilt Lockout Standard
Built-In Tie Down & Crane/Lift Locations Standard
Ride-on Platform Not Applicable
Horsepower 24.8 hp
Rated Operating Capacity (ISO) 1,000 lb
Carry Position ROC with Standard Counterweight -UnderCarriage Position 1,300 lb
Operating Weight 3390 lb
Ground Pressure (Rubber) 5.25 psi
Auxiliary Std Flow 12 gal/min
Width 35.6 in
Height to Bucket Hinge Pin 80.9 in
Fuel Tank 7 gal
Pump Capacity 12 gal/min
System Relief @ Quick Couplers 2,900 psi
Auxiliary Std Flow 12 gal/min

Performance

Rated Operating Capacity (ISO) 1,000 lb
Carry Position ROC with Standard Counterweight -UnderCarriage Position 1,300 lb
Tipping Load 2898 lb
Operating Weight 3390 lb
Ground Pressure (Rubber) 5.25 psi
Travel Speed 4.1 mph
Travel Speed - Reverse 2.9 mph
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Displacement 55 in³
Horsepower 24.8 hp
Number of Cylinders 3

Dimensions

Length 106.2 in
Width 35.6 in
Height 54.6 in
Height to Bucket Hinge Pin 80.9 in
Length of track on ground 41.4 in
Reach @ Maximum Height 18.6 in

Bobcat MT100 Mini Track Loader Features

Easy Service Access

Easy Service Access

Focus on your work with quick, simple maintenance features like tool-free hood access and easy checks for key maintenance items.

Sealed Rollers

Sealed Rollers

With permanently sealed rollers, there are no daily maintenance tasks to slow you down, eliminating the need for greasing while a sealed oil bath continuously lubricates the bearings.

Minimal Ground Disturbance

Minimal Ground Disturbance

Travel confidently over sensitive ground and worry less about repairs, thanks to low ground pressure that protects turf and finished surfaces while reducing the cost of ground repairs.

Compact Size

Compact Size

The Mini Track Loader delivers concentrated power and excellent maneuverability in tight spaces, measuring just 35.6 inches wide with standard tracks or 41.1 inches wide with wide tracks for added stability.

Replace Manual Labor

Replace Manual Labor

With a footprint not much bigger than a wheelbarrow, Bobcat mini track loaders let you swap hand tools for horsepower, offering a 1,000-pound rated operating capacity, an 80.9-inch lift height, and fast cycle times.

Simple Travel Operation

Simple Travel Operation

With ergonomic, intuitive ISO joystick controls, Bobcat mini track loaders provide easy, comfortable operation and precise machine movement, making them a great fit for operators of any experience level.

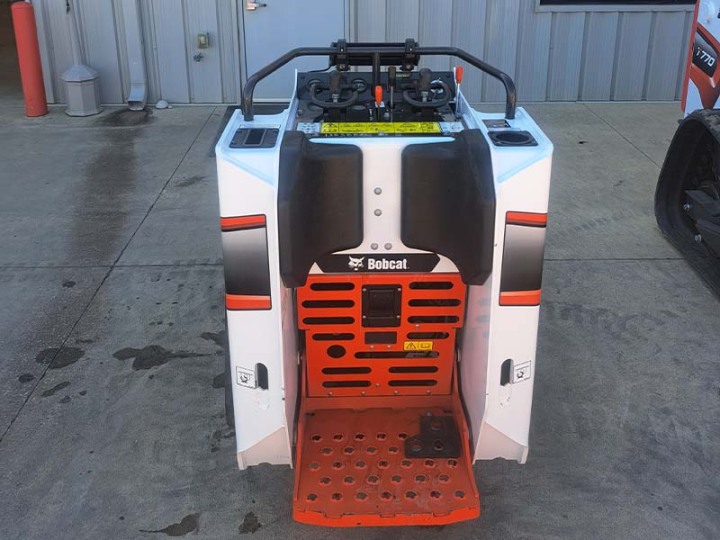

Integrated Ride-On Platform

Integrated Ride-On Platform

The integrated ride-on platform elevates you to the ideal vantage point, giving you a wide view to the sides and clear visibility of your attachment.

Optimized Roller Spacing

Optimized Roller Spacing

The track system’s roller spacing helps dampen rough terrain, delivering enhanced travel and a more comfortable ride while tackling tough jobs.

Storage and Cup Holder

Storage and Cup Holder

Keep your jobsite essentials close at hand with convenient storage for personal items and a spot to keep your drink within reach.
