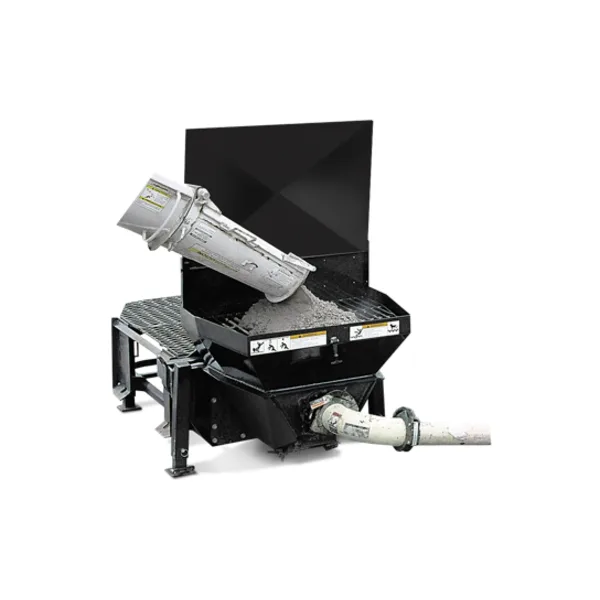

Bobcat Concrete Pump Attachment

Simplifies concrete pouring in hard-to-reach locations. Pumps concrete as far as 250 feet horizontally and up to two stories vertically. Place up to 18 cubic yards of concrete per hour with a standard, hydraulic-flow loader. High-flow loaders can place up to 28 cubic yards of concrete per hour.

Compatible With:

Loaders

Bobcat Concrete Pump Attachment

Let's Get Started

"*" indicates required fields

This field is hidden when viewing the form
Newsletter Signup
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Key Specifications

Operating Weight 2200 lb
Length 102.9 in
Width 47.9 in
Height 54.9 in
Concrete Cylinder Diameter 6 in
Concrete Cylinder Stroke 24 in
Maximum Aggregate Size 1.5 in
Maximum Concrete Pressure 750 psi
Swing Tube Diameter 5 in
Swing Valve Cylinder Diameter 3 in
Swing Valve Cylinder Stroke 6 in
Pumping Cylinder Diameter 3 in
Pumping Rate Up to 30 cu. Yd. (23 cu. M.) per hour*
Vertical Pumping Height 50 ft
Horizontal Pumping Distance 250 ft
Hopper Capacity 10 ft³

Key Features

Versatility Dual mounting positions allow the hopper to be placed on the right or left side of the loader.
High-Performance The pump can place as much as 28 cubic yards of concrete per hour, depending on the loader’s hydraulic flow.
Ease of Use The pump’s control panel swivels for easier operation.
Remote Control Convenience With the remote attachment control, operators can start and stop the loader; start, stop and reverse the pump; and turn the high-flow hydraulics on or off from outside the cab.
Adjustable Legs The pump’s legs can be easily adjusted to quickly accommodate uneven terrain.
Protective Guard Panel The protective guard panel screens out larger objects from the concrete mix.
