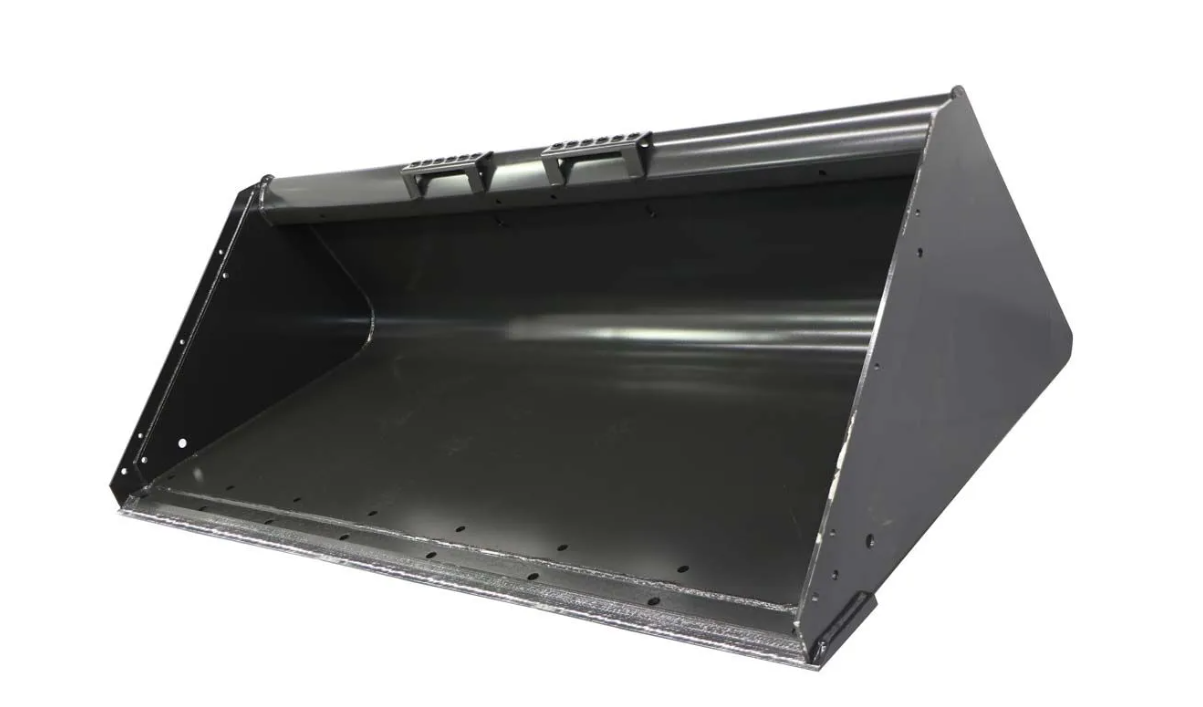

Bobcat Bucket Severe Duty – 74″ Attachment

Built to stand up to the absolute toughest jobs. Stronger mounting frame, double-walled top cross member and thicker, taller side cutting edges to handle heavy-duty grading and leveling and material handling.

Compatible With:

Loaders

Bobcat Bucket Severe Duty – 74″ Attachment

Let's Get Started

"*" indicates required fields

This field is hidden when viewing the form
Newsletter Signup
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Key Specifications

Operating Weight 762 lb
Length 38.9 in
Width 74 in
Height 24.1 in
ISO Heaped Capacity 23.5 ft³
ISO Struck Capacity 16.1 ft³
Predrilled For Bolt-on Edges or Teeth

Key Features

Excellent Cutting-Edge Visibility Provides an optimal view to the cutting edge for greater precision.
Reinforced Bucket Built with better reinforcement in the right areas of the bucket back.
Strong Cutting Edge Strong, 1-by-8-inch cutting edge withstands higher breakout forces.
Round Back Design The bucket’s round back design enhances loading and cleanout.
Waffle-Type Skid Plate The waffle-type skid plate reinforces the cutting edge and adds strength to the bottom of the bucket for longer life, providing strength with minimal additional weight.
Channel Design The top and bottom bucket sections are feature a formed channel design that provides extra strength and durability.
